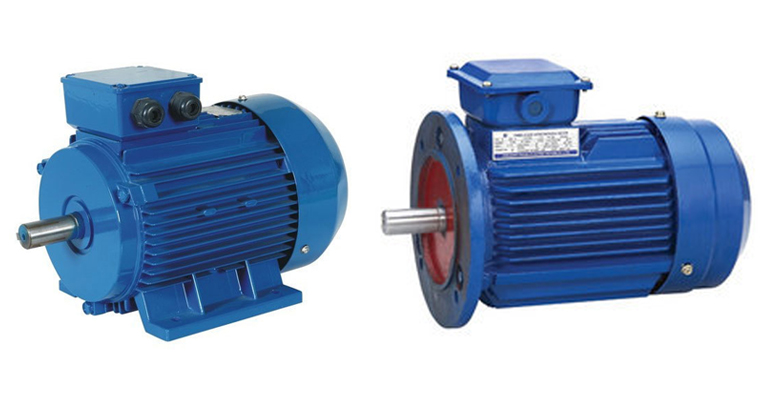

Range : Standard 3 Phase A.C. induction motors with rating 0.18 kW. to 22.5 kW. are available from frame size 63 to 200L.with standard speed and various types of construction.
Standard : Performance conforms to IS :1231 and IS:2223.
Voltage and Frequency : Motor designed are for rated voltage of 415 V+/- 10%,3 Phase, 50 +/- 5% supply. Motors with special designs voltage/frequency can be offered on request.
Construction : Standard motor with single shaft extension are for horizontal foot mounting (B2 as per IS:1231) and vertical flange/ face mounting (B3 & B14 as per IS: 2223) other types of construction can be offered on request.
Insulation System : All standard motor are provided with âFâ class insulation system motors with any other class of insulation can be offered on request.
Cooling & Ventilation : Types of cooling as per IS: 6362. all motors have an external bidirectional centrifugal fan.
Terminal Box : Terminal box position for 63 to 200 L frame will be left & rigth side.
Duties : All standard motors are S1 duty and we can supply S2 & S4 duty as per customer requirement.
